Usage

Python module

Quick start

Parametrization of structure with coordinates saved as supramolecular_cage.xyz with (nonbonded) topology supramolecular_cage.top (of the whole structure):

from metallicious import supramolecular_structure
cage = supramolecular_structure('supramolecular_cage.xyz',
                                metal_charges={'metal name 1': charge of metal 1(integer),
                                               'metal name 2':charge of metal 2(integer),...},
                                topol='supramolecular_cage.top', LJ_type='uff')
cage.parametrize(out_coord='out.pdb', out_topol='out.top')

For example, for the structure ru_pd.xyz with force-field parameters saved as ru_pd.top, which consists of two metals Pd2+ and Ru2+, the input file looks like this:

from metallicious import supramolecular_structure
cage = supramolecular_structure('ru_pd.xyz', metal_charges={'Ru': 2, 'Pd':2 },
                                topol='ru_pd.top', LJ_type='uff')
cage.parametrize(out_coord='out.pdb', out_topol='out.top')

Initial topology file

If you don’t have a topology file, you can generate a simple force-field parametrization using General Amber Force-field (GAFF):

from metallicious import supramolecular_structure
cage = supramolecular_structure('ru_pd.xyz', metal_charges={'Ru': 2, 'Pd':2 },
                                LJ_type='uff')
cage.prepare_initial_topology()
cage.parametrize(out_coord='out.pdb', out_topol='out.top')

Please note that our focus was on covalent metal parametrization; only basic support for the organic molecule parametrization is available. For more robust parameterization protocols, please refer to specialized tools such as gromacs, ATB, ambertools, and charmm-gui.

Handling missing templates

The number of combination of possible ligands and metal results that inevitably you will encounter metal site for which there is no template. In such cases two solutions are possible:

1. Parametrize template

We recommend to run template parametrization on HPC/cluster as it can take some time (our experience is ~8h on 8 CPUs per template).

Specifying explicitly the metal multiplicity using the metal_charge_mult variable instead of metal_charges, will automatically inform metallicious to be ready to parametrize the new template.

from metallicious import supramolecular_structure
cage = supramolecular_structure('ru_pd.xyz', metal_charge_mult = {'Ru': (2,1), 'Pd':(2,1)}, LJ_type='uff')
cage.parametrize(out_coord='out.pdb', out_topol='out.top')

2. Truncate existing template

If an exact template is unavailable in the library, you can truncate part of an existing template. Truncation is based on the distance from the metal centre, such as 4-bonds away (“dihedral”), 3-bonds away (“angles”), or 1-bond away (“bonds”). Such a strategy is fast but results in a loss of accuracy.

For example:

from metallicious import supramolecular_structure
cage = supramolecular_structure('ru_pd.xyz', metal_charge_mult = {'Ru': (2,1), 'Pd':(2,1)}, truncation_scheme = 'dihedral', LJ_type='merz-opc')
cage.parametrize(out_coord='out.pdb', out_topol='out.top')

Input for supramolecular_structure class

The extended input list of supramolecular_structure class:

Variable	Type	Description	Default	Needs to be specified?
filename	str	name of the coordination file	none	yes
metal_charge_mult	dict	the names charges, and multiplicity of the metals in format {metal_name: (metal_charges, multiplicity)}	none	yes or metal_charges
metal_charges	dict	the names and charges of metals in the input structure in format: {metal_name1: metal_charges1, metal1_name2: metal_charge2}	none	yes or metal_charge_mult
LJ_type	str	name of LJ dataset used for metal paramters (uff, merz-tip3p, merz-opc3, merz-spc/e, merz-tip3p-fb, merz-opc, merz-tip4p-fb, merz-tip4-ew, zhang-tip3p, zhang-opc3, zhang-spc/e, zhang-spc/eb, zhang-tip3p-fb, zhang-opc, zhang-tip4p/2005, zhang-tip4p-d, zhang-tip4p-fb, zhang-tip4p-ew)	none	yes
topol	str	force-field parameters file	none	Yes, unless later prepare_initial_topol used
keywords	list(str)	autodE keywords for QM calculations	PBE0 D3BJ def2-SVP tightOPT freq	no
improper_metal	bool	if True it will parametrize the improper dihedral involving metal	false	no
donors	list(str)	list of atom elements with which metal forms bond	[‘N’, ‘S’, ‘O’]	No
library_path	str	directory of template library, be default where the script is	path to metallicious + /library	no
search_library	bool	if True, metallicious searches templates in template library,if False, it will parametrize template	true	no
ff	str	parametrization protocol for small organic molecules (only gaff available at the moment)	‘gaff’	no
fingerprint_guess_list	list(str)	list of template names, which will be checked from library	none	no
truncation_scheme	str	name of the truncation scheme	none	no
covalent_cutoff	float	if metal-atoms smaller then cutoff it is assumed that creates bond with the metal	3.0	no

Bash command line

It is also possible to use the metallicious just from the command line. For example:

metallicious -f cage.xyz -LJ_type merz-tip3p -metal_and_charges Pd 2 -prepare_topol

For details, see:

metallicious -h

Extended list of the bash command:

Variable	Comment	possible input	Default	Required
-h, –help	show help message and exit	possible input	none	no
-f	metaloorganic coordination file	.gro, .pdb and other coordination formats supported by MDAnalysis	none	yes
-p	metaloorganic force-field parameters of non-bonded model	.top, .prmtop, etc. and other supported by ParmEd	none	yes (unless prepare_topol specified)
-of	output metaloorganic structure	.gro, .pdb and other formats supported by MDAnalysis	out.pdb	no
-op	output metaloorganic topology	.top, .prmtop and other formats supported by ParmEd	out.top	no
-metal_charges	metal names and charges (optionally, multiplicity when parametrization needed)	names and charges are separate by whitespace (e.g., Pd 2 Ru 2) or names, charges and multiplicities separated by spaces (e.g., Pd 2 1 Ru 2 1)	none	yes
-keywords	autodE keywords for QM calculations	see autodE or ORCA manual	PBE0 D3BJ def2-SVP tightOPT freq	no
-LJ_type	type of parameters for Lennard-Jones parameters	uff, merz-tip3p, merz-opc3, merz-spc/e, merz-tip3p-fb, merz-opc, merz-tip4p-fb, merz-tip4-ew, zhang-tip3p, zhang-opc3, zhang-spc/e, zhang-spc/eb, zhang-tip3p-fb, zhang-opc, zhang-tip4p/2005, zhang-tip4p-d, zhang-tip4p-fb, zhang-tip4p-ew	uff	no
-truncate	truncation scheme	none, 3bond/dihedral, 2bond/angle, 1bond/bond	none	no
-improper_metal	calculate the improper dihedral of the metal-aromatic	true/false	false	no
-donors	donors from the connected ligands, usually electronegative atoms, such as N, S, O, but sometimes metal is connected to carbon	any element name separated by space	N S O	no
-prepare_topol	prepare initial topology using GAFF	true/false	false	no
-linker_topol	linker force-field (topology) parameters, only used when prepare_topol=True	.top, .prmtop, etc. and other formats supported by ParmEd	none	no

Available parameters

Default templates

By default, metallicious contains a few templates which are commonly used in metallo-organic cages. However, more templates can be easily added using automated parametrization procedure, which is also part of metallicious.

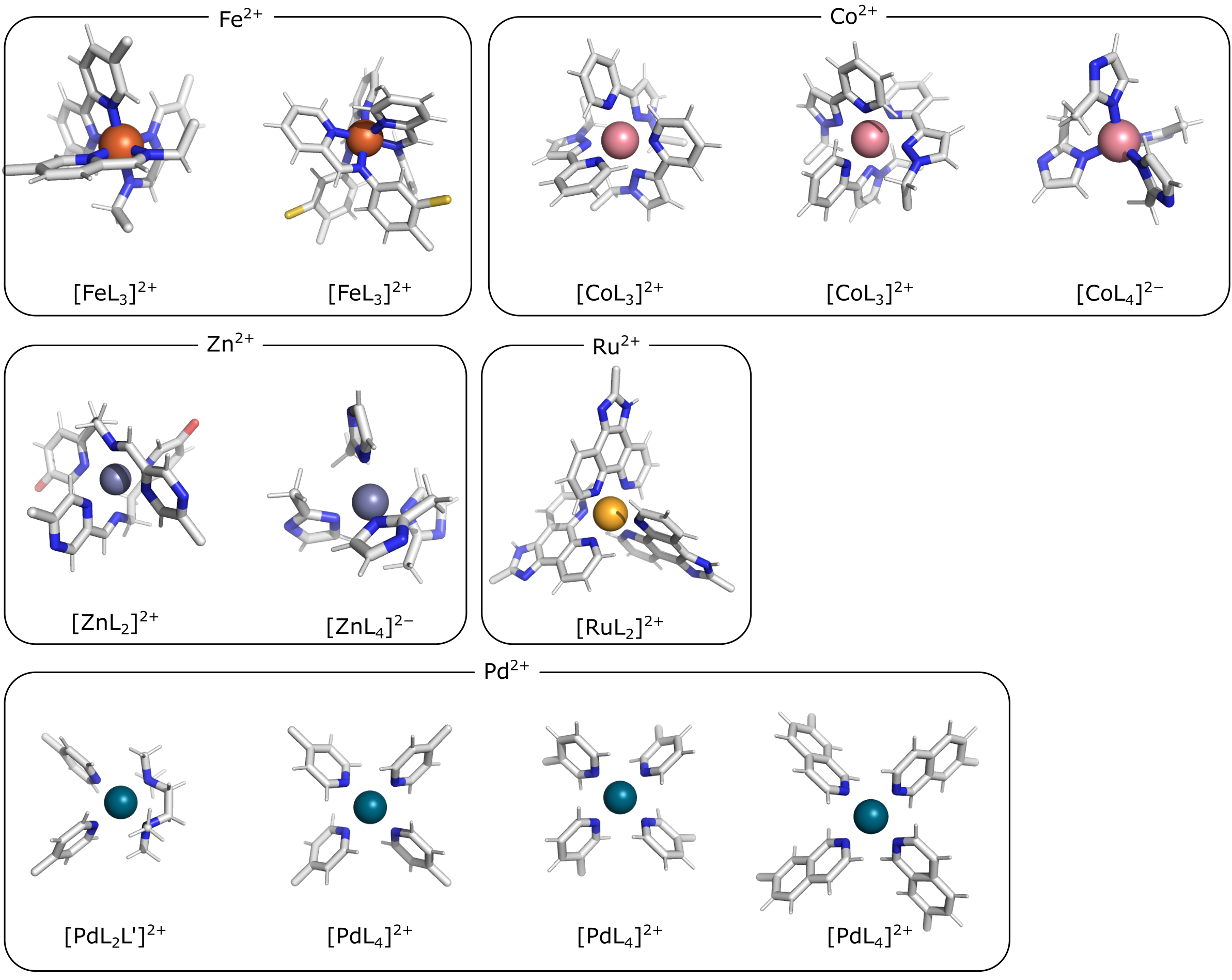

Here should be figure of the available templates — Initial templates available as part of *metallicious*.

Lennard-Jones

metallicious overwrites metal parameters using Lennard-Jones (LJ) parameters taken from literature. In particular, it is possible to use listed below parameters:

merz-OPC [Merzopc]

merz-opc3 [Merzopc]

merz-tip3p-fb [Merzopc]

merz-tip4p-fb [Merzopc]

merz-spce [Merztip3p]

merz-tip3p [Merztip3p]

merz-tip4-ew [Merztip3p]

zhang-tip3p [zhang]

zhang-opc3 [zhang]

zhang-spce [zhang]

zhang-spceb [zhang]

zhang-tip3p-fb [zhang]

zhang-opc [zhang]

zhang-tip4p2005 [zhang]

zhang-tip4p-d [zhang]

zhang-tip4p-fb [zhang]

zhang-tip4p-ew [zhang]

uff [uff]

Periodic table below shows for which elements L-J parameters are available.

Here should be figure of periodic table with indicated L-J parameters — Available L-J parameters in *metallicious*. L-J parameters for most of the elements are available from UFF [uff]. L-J parameters for some of the metals were derived by Merz et al. [Merzopc] [Merztip3p] and Zhang et al. [zhang] to reproduce hydration free energies and coordination number in aqueous complex.
